Product families for SiC PVT crystal growth, MOCVD epitaxy, TaC coated ultra-high-temperature hot zones, semiconductor thermal fields, vacuum furnaces, and specialty replacement parts.
Use this page as a pre-RFQ navigator: pick the product family, capture the correct engineering inputs like material purity and drawing tolerances, and move directly to sample validation criteria.
Use this table before opening a product detail page. It separates material architecture from part shape so RFQs do not start from the wrong manufacturing route.
| Material Family | Best Fit | Selection Trigger | Key RFQ Inputs | Review Path |
|---|---|---|---|---|
| High-purity graphite | SiC PVT crucibles, heaters, shields, rings, lids, and graphite hot-zone parts. | Use when thermal stability, machinability, and low ash content are the dominant requirements. | Graphite grade, density, ash target, trace-metal limits, operating temperature, and CAD tolerances. | Open detail |
| CVD SiC coated graphite | MOCVD susceptors, wafer carriers, dummy wafers, trays, and gas-facing epitaxy hardware. | Use when reactive gases, wafer contamination, carbon dusting, or coating lifetime drive the purchase. | Base graphite target, coating thickness, wafer size, pocket layout, equipment model, and surface finish. | Open detail |
| TaC coated graphite | SiC PVT crucibles, guide rings, seed supports, and ultra-high-temperature vapor-facing graphite hardware. | Use when SiC coating or purified graphite lifetime is limited by 2000C+ vapor corrosion, sublimation, or crystal-growth contamination risk. | TaC coating map, graphite substrate target, growth temperature, vapor exposure, seed or ring geometry, and trace-element acceptance limits. | Open detail |
| C/C composite | Fasteners, trays, plates, fixtures, and load-bearing furnace structures. | Use when graphite is too brittle or refractory metal creates excessive thermal mass and maintenance cost. | Load at temperature, support span, fiber architecture, thread standard, atmosphere, and cycle count. | Open detail |
| C/C composite bolts | High-temperature structural bolts, studs, and nuts for vacuum furnaces and SiC PVT reactors. | Use when molybdenum bolts embrittle or sag, or when graphite studs strip under torque tightening. | Thread size (M6–M24), length, head style, 3D weave architecture, operating temperature, and ash purity. | Open detail |
| Rigid carbon felt | Vacuum furnace insulation cylinders, rings, panels, and hot-zone heat-loss control. | Use when energy efficiency, thermal uniformity, insulation stability, and low outgassing matter. | Hot-zone dimensions, thickness, segmentation, foil or coating surface, and maximum temperature. | Open detail |
| Specialty graphite replacement | Dry pump vanes, aluminum degassing rotors, and high-temperature wear consumables. | Use when the problem is wear, self-lubrication, oxidation, sealing, or repeat MRO availability. | Sample or drawing, current failure mode, service interval, operating speed, temperature, and annual demand. | Open detail |
Ultra-high purity graphite crucibles designed specifically for SiC PVT crystal growth. Engineered for low ash targets, including <10 ppm programs where specified, to reduce contamination risk during 2000°C+ operations.
Procurement teams at SiC wafer and boule manufacturing facilities.
Custom-machined graphite heating elements for semiconductor furnaces. Delivering uniform thermal profiles and extended lifespan in harsh vacuum and inert gas environments.
Furnace builders and maintenance engineering teams.
Complete graphite hot zone assemblies, including insulation, heaters, and shields. Designed for rapid integration into vacuum furnaces with strict thermal uniformity requirements.
Furnace OEMs and end-user maintenance managers.
Rigid graphite felt insulation for high-temperature vacuum furnaces and inert-atmosphere hot zones. Designed for low thermal conductivity, shape stability, and controlled outgassing.
Thermal engineers and furnace maintenance teams.
Precision graphite susceptors with high-purity CVD SiC coating for MOCVD and silicon epitaxy. The coating helps improve resistance to corrosive gases and reduce carbon particle contamination risk.
Process engineers in semiconductor fabs.
SiC coated planetary wafer carriers for MOCVD systems. Precision-machined pockets ensure uniform wafer heating and gas flow dynamics for consistent epitaxial growth.
Epi-foundry procurement and fab process teams.

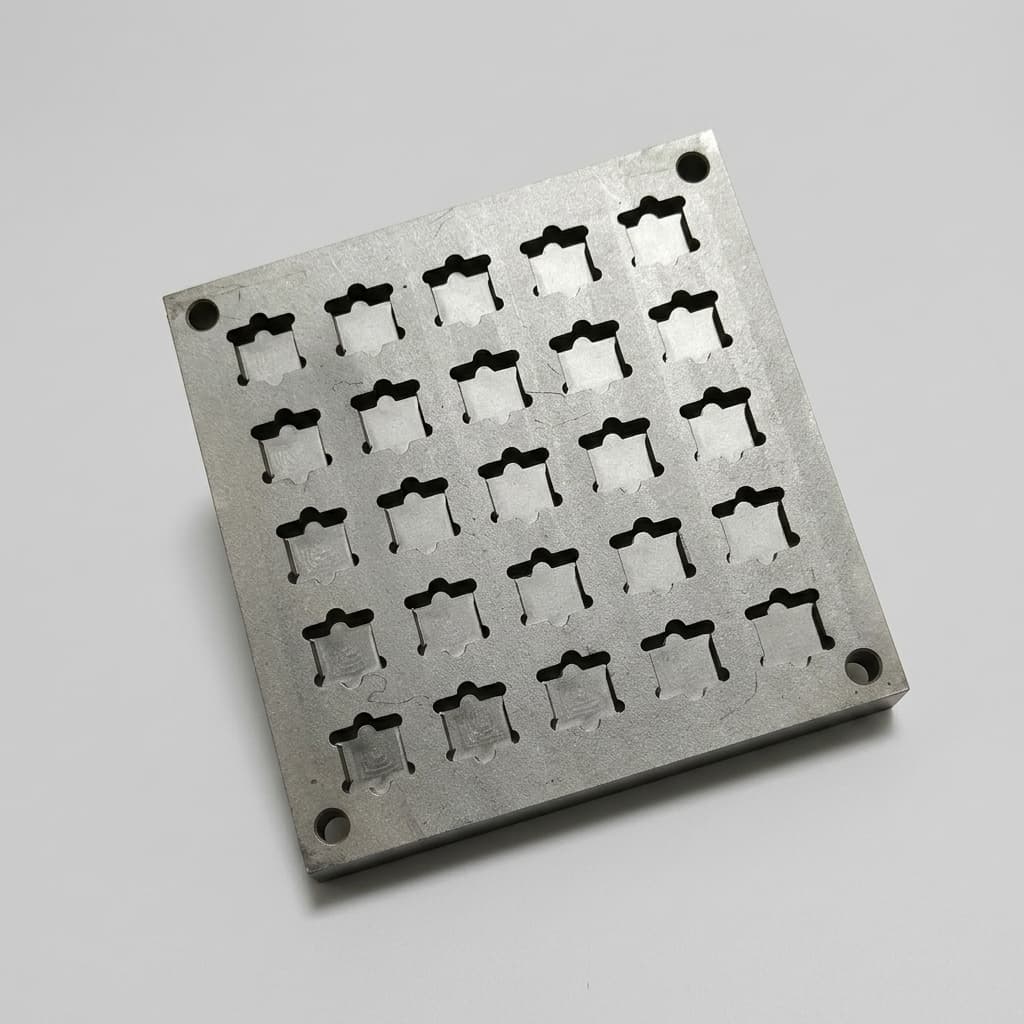

CVD SiC coated graphite dummy wafers used for thermal mass simulation, equipment calibration, and chamber burn-in. Cost-effective alternative to solid SiC dummies.
Fab maintenance and equipment engineering.
Carbon/Carbon composite bolts, nuts, and studs for high-temperature vacuum furnaces. Replacing brittle graphite fasteners with high-tensile-strength C/C composites to prevent catastrophic failure.
Furnace OEMs and heat treatment facilities.
High-strength, lightweight C/C composite trays and fixtures for heat treatment and brazing. Offers significantly longer lifespan and higher load capacity than conventional graphite trays.
Heat treatment plant managers and process engineers.
Self-lubricating, wear-resistant graphite vanes for dry-running rotary vane vacuum pumps. Precision-machined for optimal sealing and long continuous operation.
Pump OEMs and industrial maintenance teams.
Anti-oxidation treated graphite rotors and shafts for molten aluminum degassing. Designed for long life and efficient hydrogen removal in foundries.
Foundry procurement and metallurgical engineers.
Tantalum carbide coated graphite crucibles for ultra-high-temperature SiC PVT and AlN crystal growth environments where standard SiC coating can degrade above 2000°C.
SiC wafer manufacturers and crystal-growth R&D teams qualifying longer-life hot-zone consumables.
TaC coated graphite guide rings and flow-control rings for SiC PVT hot zones. Built for extreme-temperature vapor guidance, reduced erosion risk, and drawing-based retrofit programs.
Crystal-growth furnace engineers replacing eroded rings, flow guides, and vapor-zone graphite hardware.
TaC coated graphite susceptors and seed-support components for ultra-high-temperature compound semiconductor processes that require stronger vapor corrosion resistance than conventional graphite or SiC coating.
R&D and production teams qualifying high-value TaC coated graphite parts for next-generation crystal growth.
| Product Family | Primary Buyer Focus | Key Metric | Why It Matters |
|---|---|---|---|
| SiC Crystal Growth Crucible | Procurement teams at SiC wafer and boule manufacturing facilities. | Ash Content: < 5-10 ppm | Directly impacts crystal defect density. |
| High-Purity Graphite Heater | Furnace builders and maintenance engineering teams. | Resistivity Variance: < 5% | Ensures uniform heating zone. |
| Graphite Hot Zone | Furnace OEMs and end-user maintenance managers. | Temperature Uniformity: +/- 5°C | Critical for process repeatability. |
| Rigid Carbon Felt Insulation | Thermal engineers and furnace maintenance teams. | Thermal Conductivity: 0.1 - 0.2 W/m·K at 1000°C | Determines energy efficiency and max temp. |
| CVD SiC Coated Susceptor | Process engineers in semiconductor fabs. | Coating Thickness: 80 - 120 µm | Ensures longevity against etching gases. |
| SiC Coated Wafer Carrier | Epi-foundry procurement and fab process teams. | Pocket Flatness: < 0.05 mm | Critical for wafer temperature uniformity. |
| SiC Coated Dummy Wafer | Fab maintenance and equipment engineering. | Dimensional Tolerance: +/- 0.02 mm | Must fit standard robotic handling systems. |
| C/C Composite Fasteners | Furnace OEMs and heat treatment facilities. | Tensile Strength: > 150 MPa | Prevents fastener snapping during thermal cycles. |
| C/C Composite Trays | Heat treatment plant managers and process engineers. | Flexural Strength: > 120 MPa | Allows for thinner, lighter trays holding heavy loads. |
| Vacuum Pump Graphite Vanes | Pump OEMs and industrial maintenance teams. | Thickness Tolerance: +/- 0.01 mm | Ensures free sliding in the rotor slot without gas leakage. |
| Aluminum Degassing Graphite Rotor | Foundry procurement and metallurgical engineers. | Service Life: 30 - 60 days (varies by usage) | Reduces downtime and consumable costs. |
| TaC Coated Graphite Crucible | SiC wafer manufacturers and crystal-growth R&D teams qualifying longer-life hot-zone consumables. | Maximum Service Temperature: Application review up to 2300°C class | TaC is selected when SiC coated or purified graphite parts face severe high-temperature degradation. |
| Tantalum Carbide Guide Ring | Crystal-growth furnace engineers replacing eroded rings, flow guides, and vapor-zone graphite hardware. | Geometry Control: Drawing-defined OD, ID, groove, and flatness targets | Guide ring geometry influences vapor flow, thermal gradients, and repeatable furnace assembly. |
| TaC Coated Susceptor | R&D and production teams qualifying high-value TaC coated graphite parts for next-generation crystal growth. | Process Fit: SiC / AlN ultra-high-temperature growth review | TaC coated susceptors are project-specific parts where geometry and process exposure drive feasibility. |
A selection of high-purity graphite, SiC coated graphite, and C/C composite parts from our advanced carbon portfolio.
