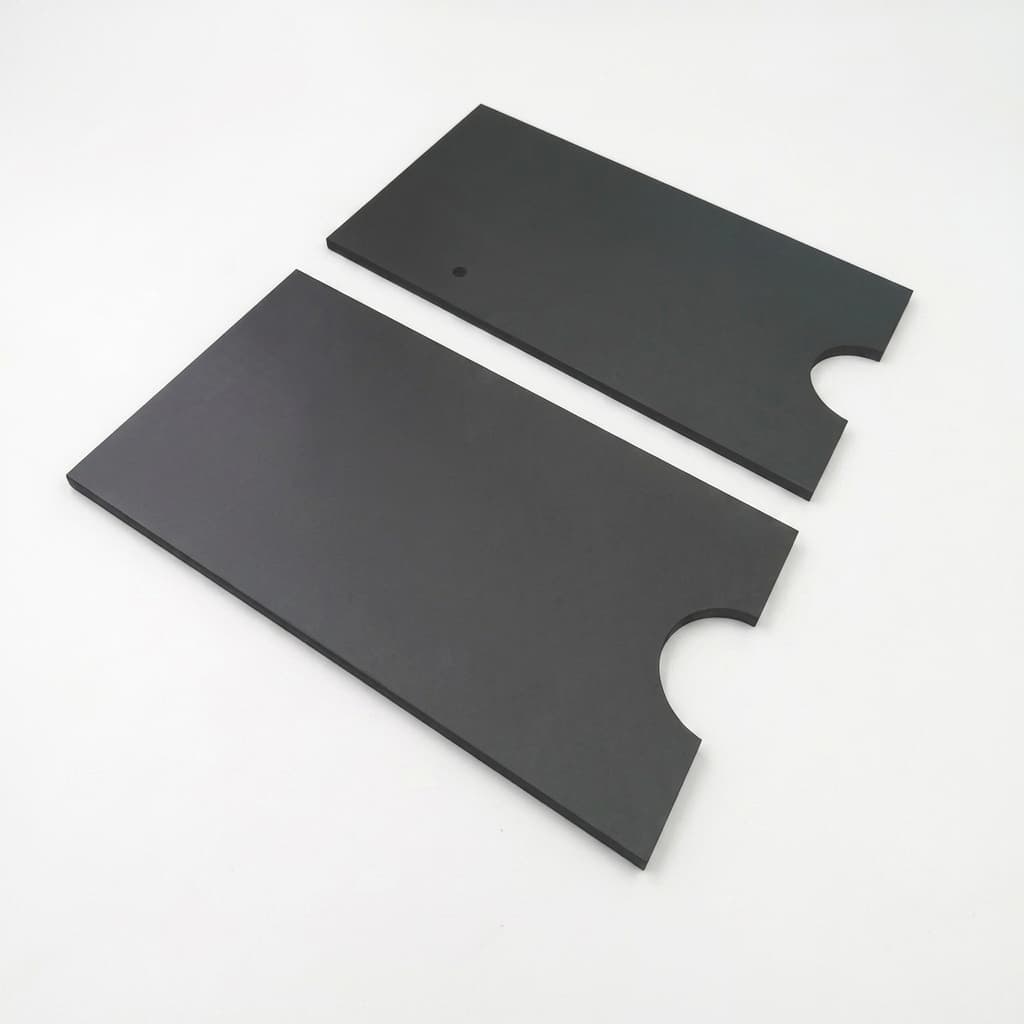

Advanced Graphite Machining

Plan an RFQ for high-purity graphite, SiC-coated graphite, or C/C composite parts. Screen the application, operating temperature, and tolerance target, then confirm feasibility against your drawing and inspection requirements.

Request an engineering review See RFQ checklist

Graphite Machining RFQ Advisor

Get a first-pass checklist from three inputs. This is a screening aid; final material and machining feasibility require drawing review.

Primary application (required)

Maximum operating temperature (required)

Tightest requested machining tolerance (required)

These are screening categories, not guaranteed machining capabilities. Identify critical features on the drawing.

Select an application, temperature range, and tolerance target to build a tailored RFQ checklist.

Machining Decisions at a Glance

Feature-specific

Tolerance planning

Mark only fit, sealing, and alignment dimensions as critical. Confirm each tolerance against part size, graphite grade, geometry, coating sequence, and the agreed inspection method.

After coating

Define the acceptance surface

Specify the surface, roughness parameter, measurement method, and whether acceptance applies before or after coating. Do not assume the same finish target fits every face.

Drawing review

Confirm the machine envelope

Maximum part size depends on the full geometry, workholding, tool access, and setup plan. Include overall dimensions and handling constraints in the RFQ for confirmation.

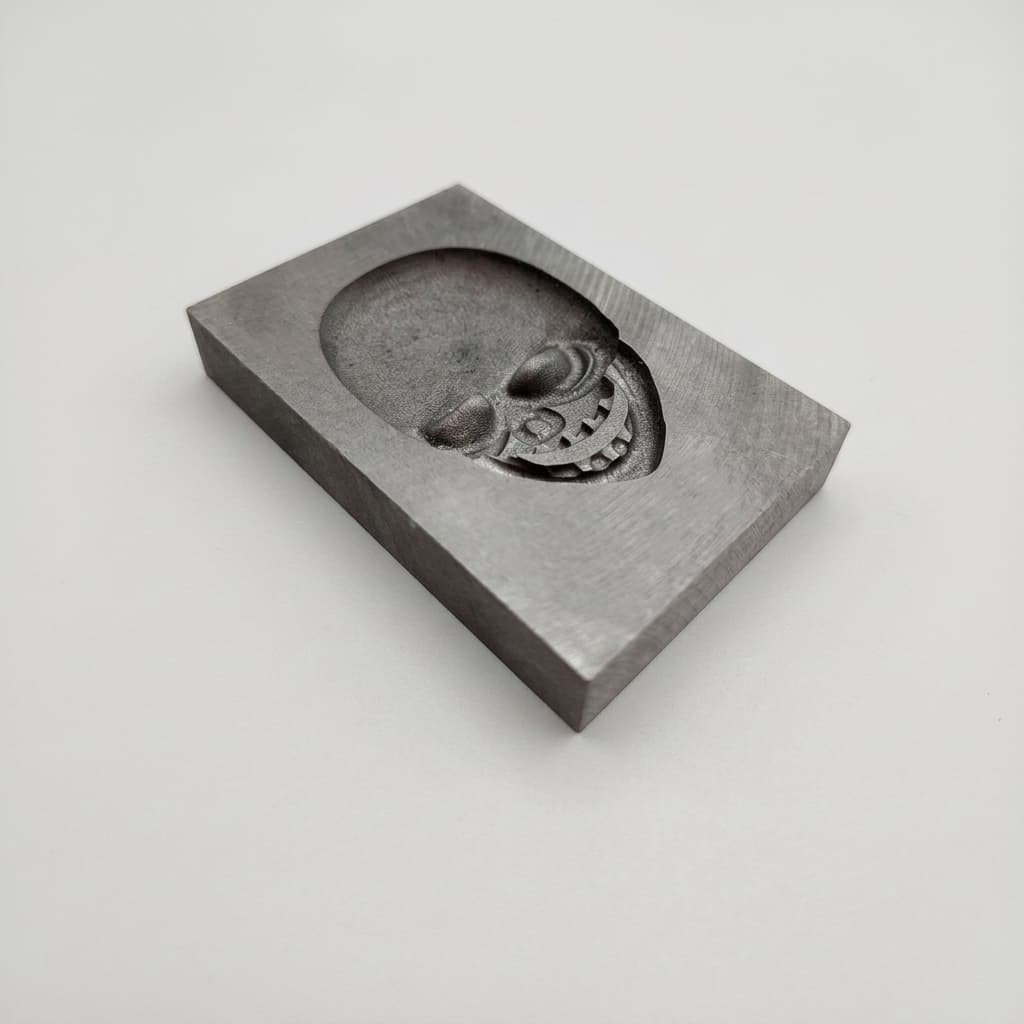

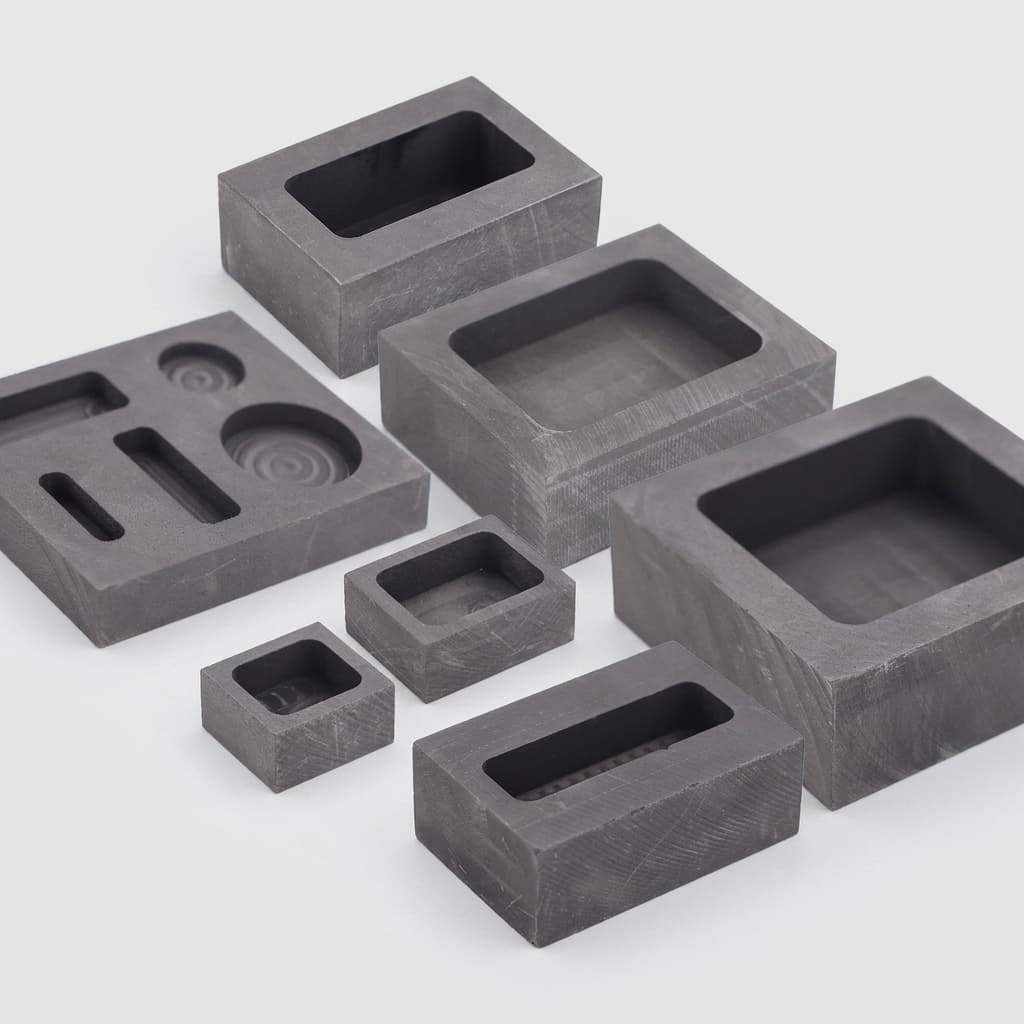

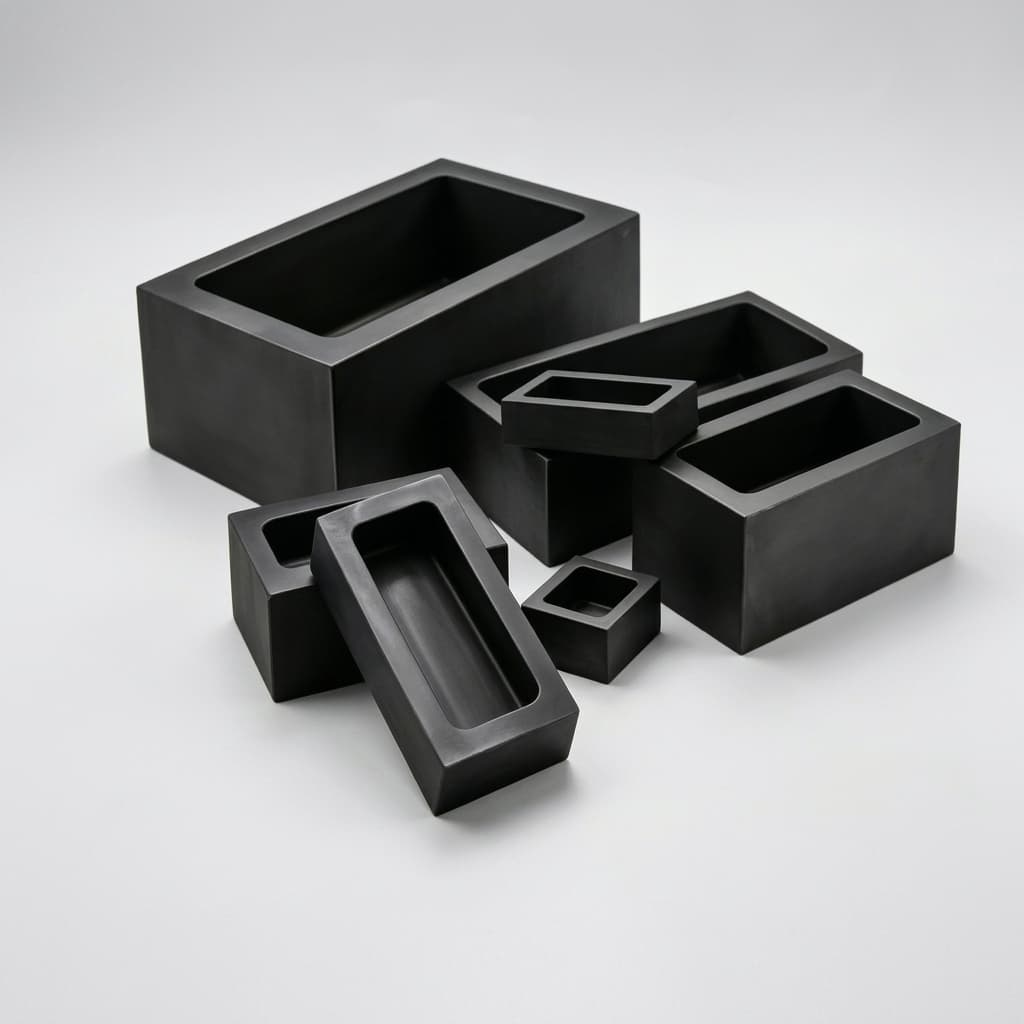

Material-Specific Machining Guidance

Graphite is inherently brittle and prone to chipping. Different grades and composite structures require specific tooling, feed rates, and environmental controls.

Material-specific graphite machining issues and RFQ review points
Material Type	Typical Applications	Machining Challenge	RFQ Review Focus
Isostatic Graphite	Semiconductor, Epitaxy	Edge chipping, fine dust, and dimensional variation between grades.	Select grade, toolpath, dust collection, and inspection around the part geometry and contamination limits. Avoid transferring one cutting recipe across grades.
CVD SiC Coated Graphite	RTP/Epi Susceptors	Coating build changes finished dimensions; thickness and coverage depend on the coating route and geometry.	Set pre-coat stock and post-coat acceptance dimensions with the coating supplier. Review pockets, edges, and interfaces individually.
C/C Composite	Hot Zones, Fasteners	Architecture-dependent tool wear and possible fiber pull-out or delamination at drilled features.	Validate tool geometry and cutting parameters on a representative material lot; inspect hole entry and exit. Published results on one C/C construction are not a universal recipe.

Quality Risks

Dust and inspection: Agree on dust collection, cleaning, and packaging controls for the contamination limit. Define datum strategy and inspection method for the actual part geometry and surface condition.
Threads and brittle features: Thread capacity depends on grade, engagement, wall thickness, and load. Review coarse threads or a qualified insert where the connection carries load; do not assume metal-equivalent strength.
Coating fit and thermal cycling: Review coating coverage at corners, edges, and pockets, and confirm substrate/coating compatibility for the operating cycle. Specify final dimensions and inspection after coating when coated features control fit.

RFQ Checklist

To ensure an accurate quote and feasibility review, please include:

CAD files in STEP or IGES format.
2D drawings highlighting only critical tolerances.
Required material grade or application details.
Expected operating temperature and environment.
Surface finish requirements (Ra value).

Send a drawing for review

Graphite Design Constraints (Guidelines)

To optimize manufacturability and cost, consider the following limitations inherent to graphite's brittle structure:

Min. Hole Diameter

No universal minimum. Confirm diameter, depth-to-diameter ratio, edge distance, material grade, and inspection access together.

Max Depth-to-Diameter

Depends on diameter, chip evacuation, tool access, and hole tolerance. Flag deep holes for supplier review.

Internal Corner Radii

Match the internal radius to the cutter and required coating coverage; avoid specifying a sharp internal corner where a tool radius is needed.

Wall Thickness

Depends on unsupported length, grade, clamping, machining sequence, and service load. Review thin sections from the CAD model before release.

Method, evidence, and limits

This advisor is an RFQ screening aid, not a process-capability calculation. The application, temperature band, and requested tolerance are not enough to approve a part. Final material, coating, tolerance, and inspection requirements depend on the drawing, grade, geometry, service atmosphere, and qualification criteria.

Machining and inspection: Toyo Tanso describes graphite machining with NC equipment and inspection of machining accuracy with 3D measurement equipment. This supports specifying a process and inspection plan, not a universal tolerance claim. Toyo Tanso manufacturing process.
Coating thickness: Toyo Tanso lists 120 μm as the standard thickness for its PERMA KOTE product and says it can be modified from 20 to 500 μm. Treat this as one supplier-specific reference; confirm the selected coating and finished dimensions for the project. PERMA KOTE specifications.
C/C drilling: A 2020 study of drilling a particular C/C and aluminium stack found delamination depended on feed, cutting speed, and drill point angle. Its settings are specific to that test, so use representative coupons to qualify another construction. Bayraktar and Turgut, “Determination of delamination in drilling of carbon fiber reinforced carbon matrix composites/Al 6013-T651 stacks,” Measurement (2020).

Evidence reviewed 28 September 2026. Numerical values in the linked sources are product- or experiment-specific; they do not establish this supplier's blanket machining capability. Put critical dimensions, coating state, and acceptance method on the RFQ drawing.

Frequently Asked Questions

Can customer-supplied graphite be machined?

Ask for a case-by-case review. Include grade identification, material certificates, condition, and service history where available so the supplier can confirm suitability.

How do you verify tolerances before shipping?

Agree the critical dimensions, datums, coating state, and inspection method before production. Ask the supplier to include the agreed measurements in the inspection report.

Can you achieve a polished mirror finish on graphite?

Set the roughness target against the grade, surface, and measurement method. If a coating is planned, state whether the finish requirement applies before or after coating and qualify the final surface with the coating supplier.

Is ±0.01 mm a standard tolerance for every graphite feature?

No. Treat tight values as feature-specific requirements for supplier review. Part size, geometry, grade, setup, coating, and measurement strategy affect feasibility and cost.

Does every semiconductor graphite part need a SiC coating?

Not as a universal rule. Decide from the process chemistry, contamination limits, operating cycle, and equipment design; specify which faces need coating and how final dimensions will be accepted.

What information helps confirm an oversized or thin-wall part?

Send the full CAD model, overall dimensions, handling and clamping constraints, critical features, material grade, and service conditions. The supplier can then review machine envelope and setup feasibility.
